Command Bar

​

Creating a command bar flow

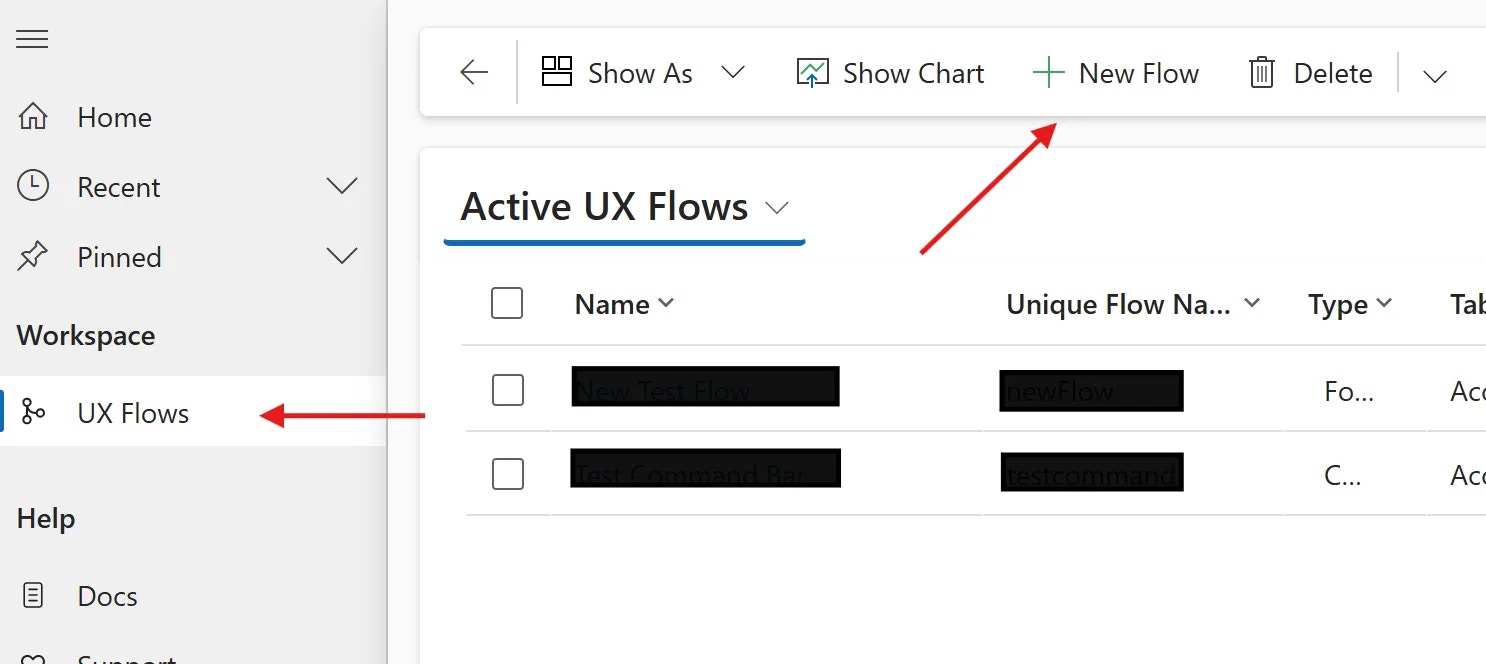

1. From Flows click on New

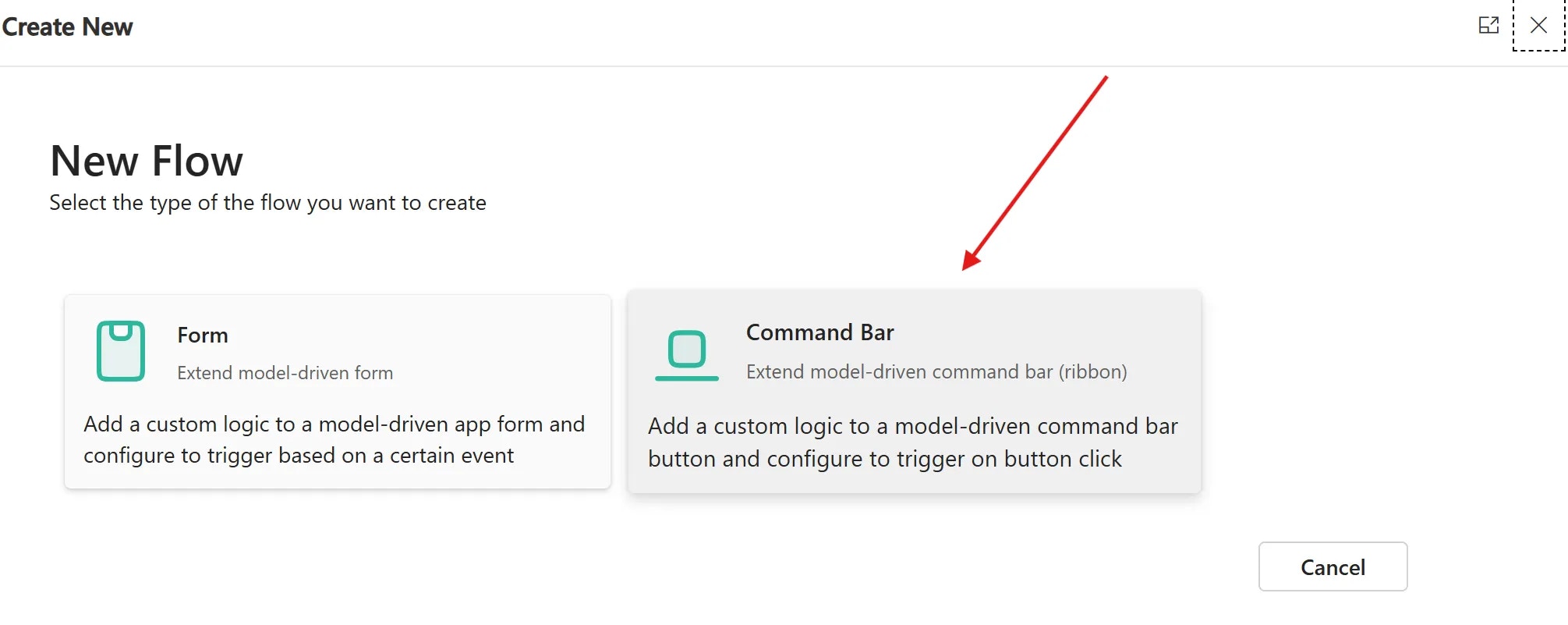

2. Choose the “Command bar (Ribbon)” option

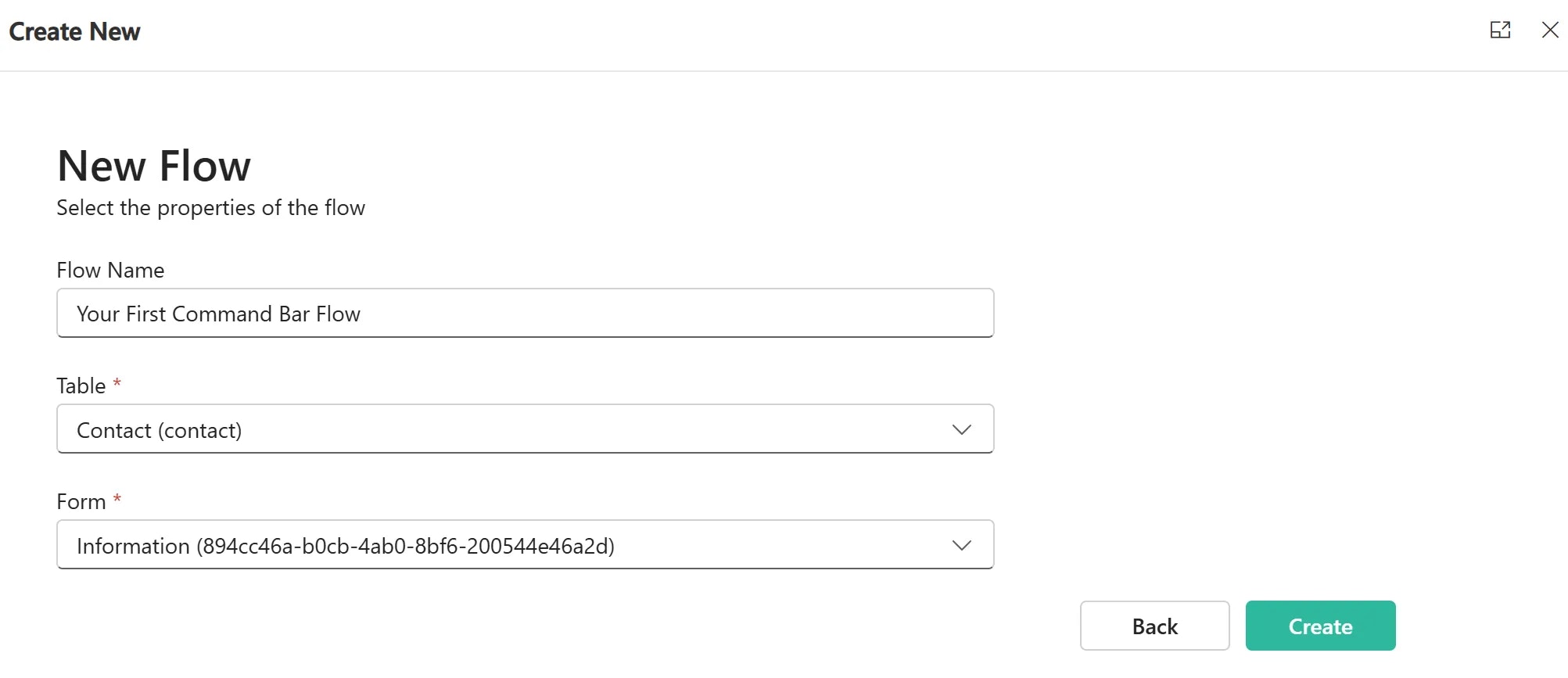

3. Set a name for the flow and then choose a table and a form for the command bar you want to extend.

4. Click on Create

​

Edit your flow

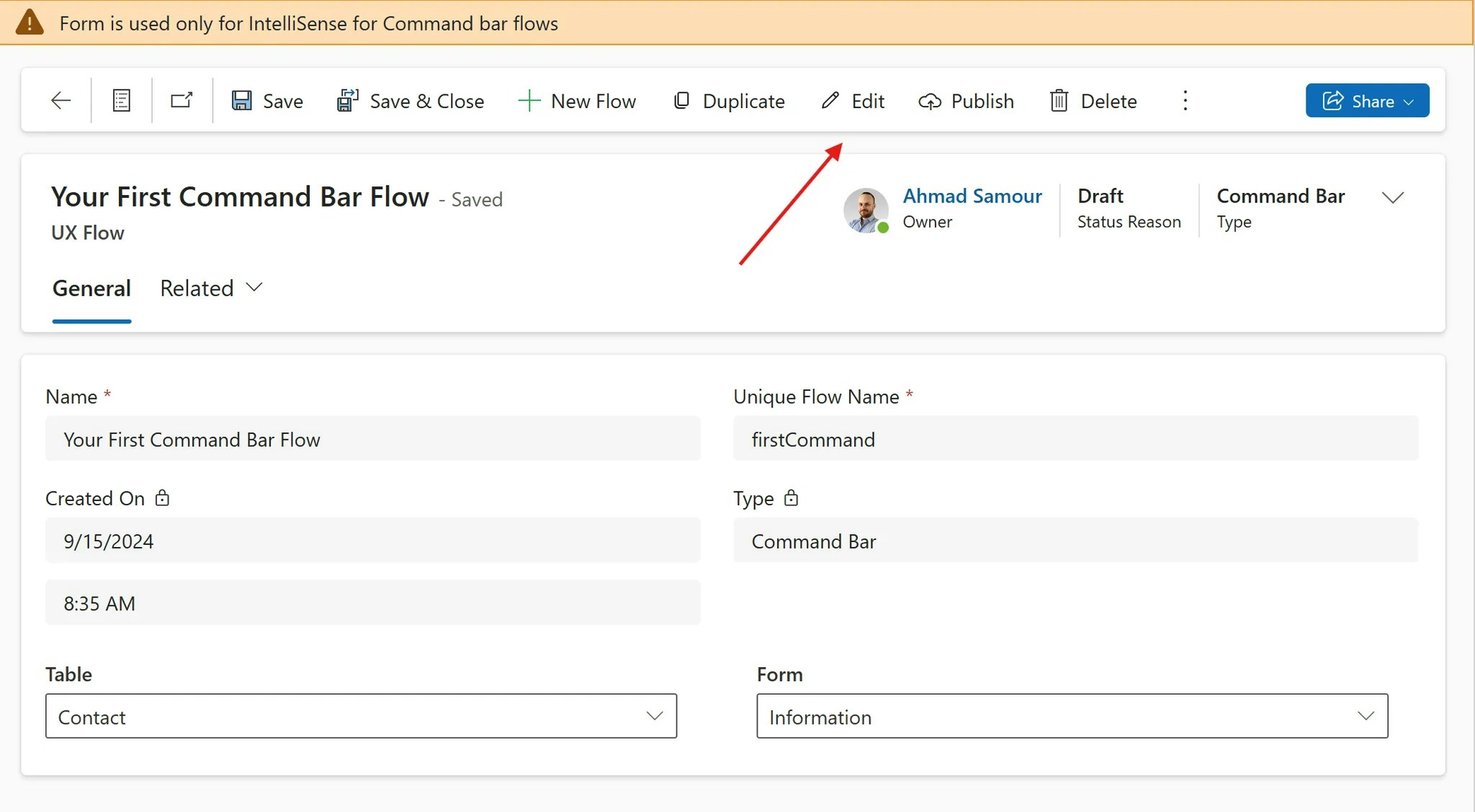

1. Click on the Edit button

2. Configure your flow logic

3. Publish your Flow

​

Use your flow in a Command

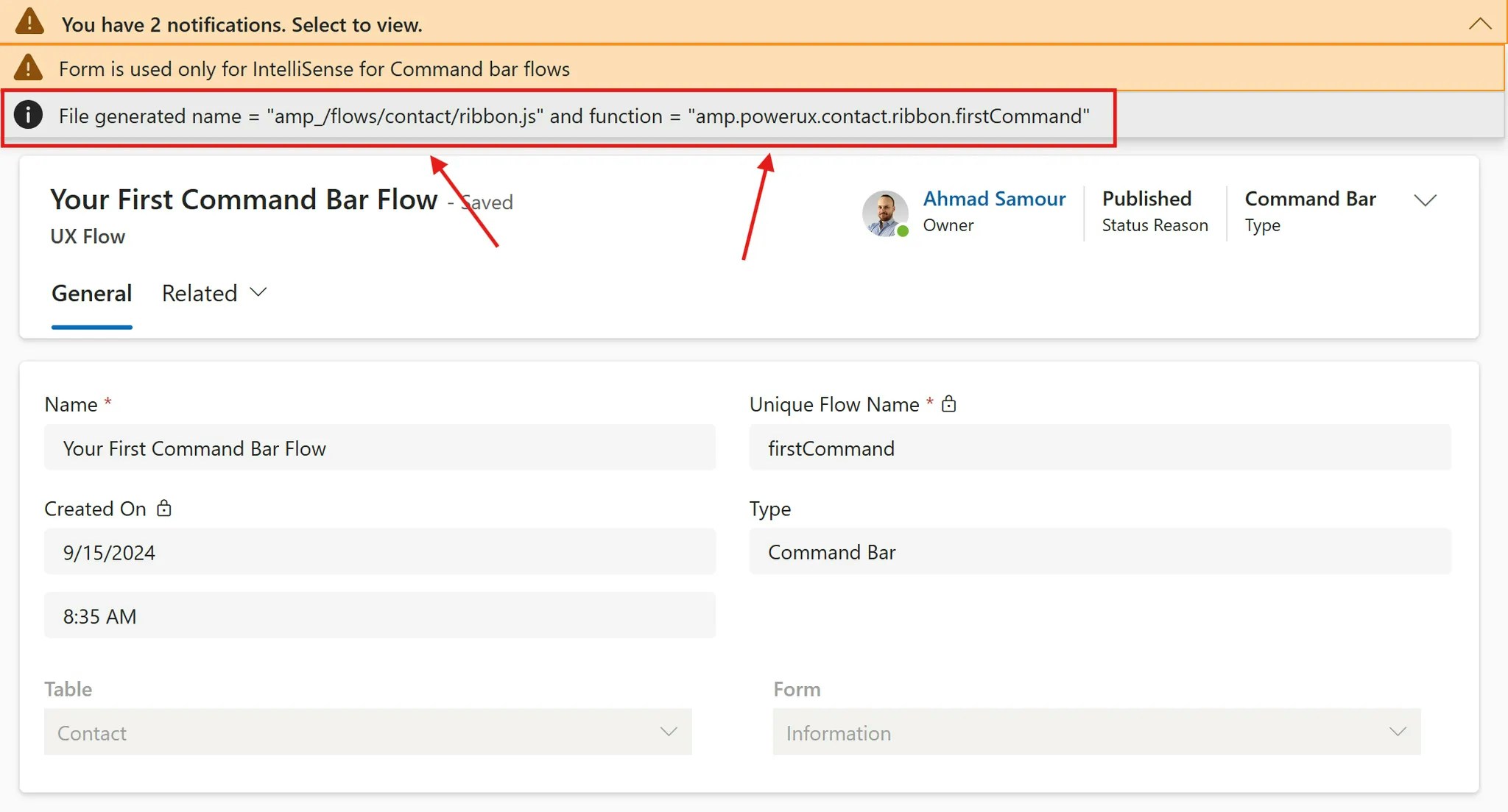

1. Copy the details of your published flow You will get two values: A. File name B. Function name

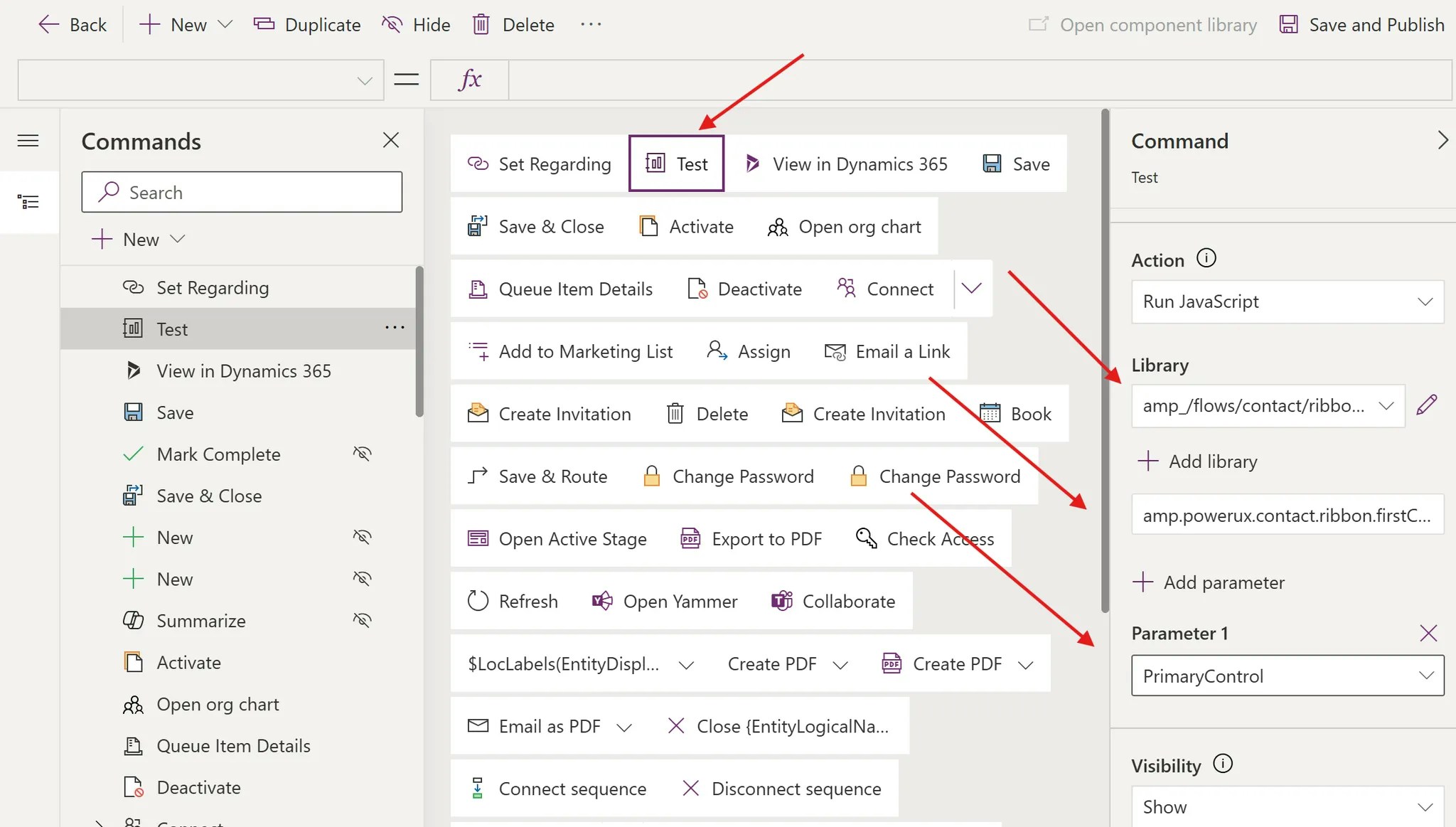

2. Open the Command Bar designer and click Edit Command bar for the entity you want to extend

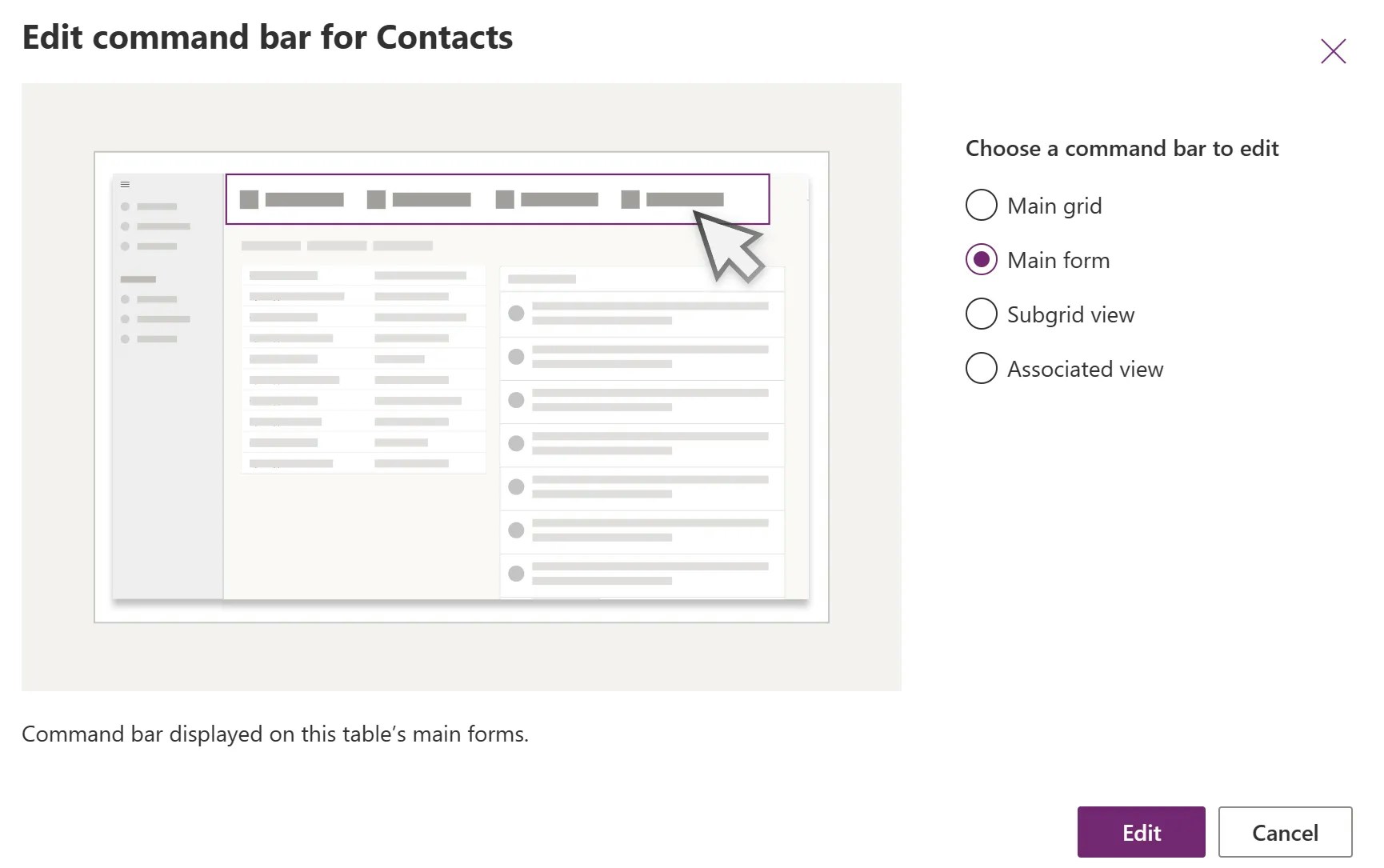

3. Choose Main form

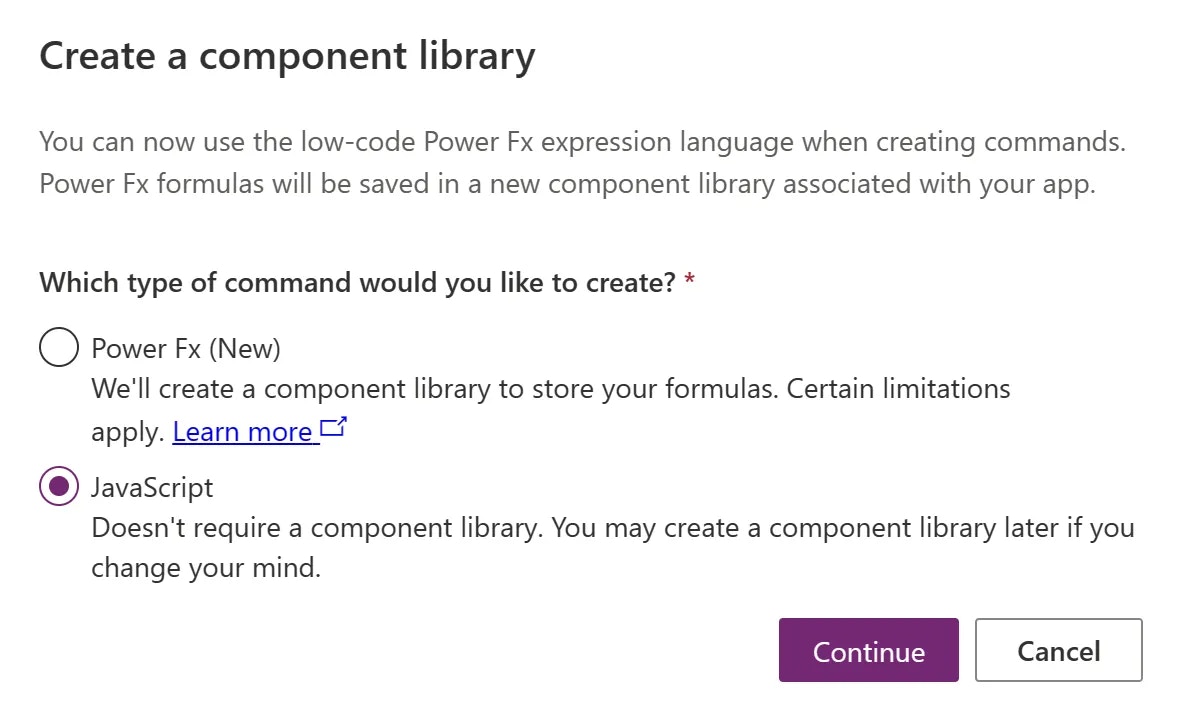

4. Create a new Command and choose type as JavaScript

5. Fill in the details you copied from the published flow Library: Copy it from the library name of the published flow Function: Copy it from the function of the published flow Parameter: pass the Primary Control as the first parameter

6. Save & Publish

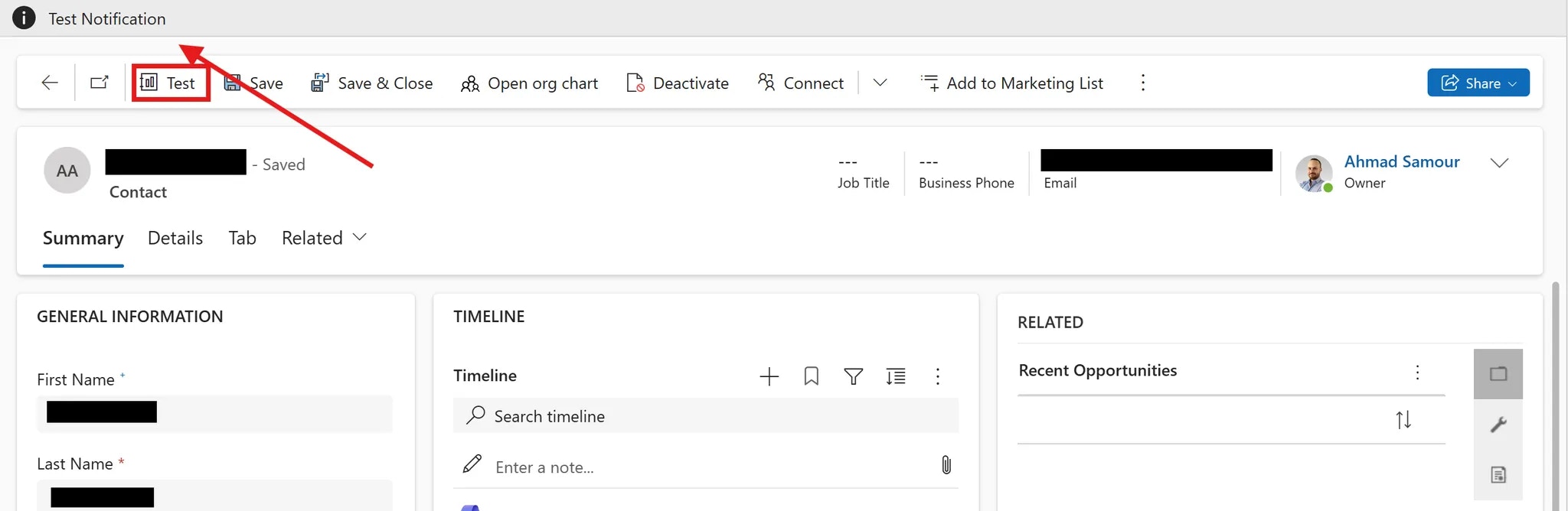

Observe the result after clicking on the button
